Modentic's check valves provide the exceptional performance to serve the most critical industrial environment.

Modentic's check valve line includes cast steel and forge steel type construction.

Cast/Forged Steel Check Valves

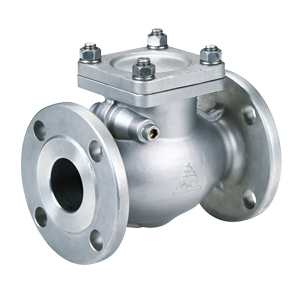

Cast Steel Check Valves

SF

API 594 CAST STEEL CHECK VALVE

SIZE & PRESSURE

  • Class 150/300/600/900/1500/2500 for 1/2" ~ 36" ( DN15 ~ DN900 )
  • PN16/40 for 1/2" ~ 36" ( DN15 ~ DN900 )

END CONNECTION :

  • Raised Face/Flat Face/RTJ Flanged Ends

FEATURE

  1. Bolted Bonnet
literature

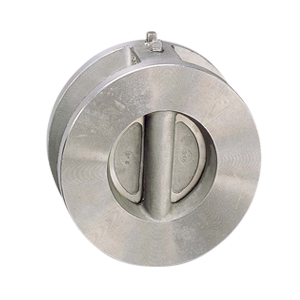

Cast Steel Dual Plate Check Valves

MV

API 594 CAST STEEL DUAL PLATE CHECK VALVE

SIZE & PRESSURE

  • Class 150/300/600 for 2" ~ 36" ( DN50 ~ DN900 )
  • PN16/40 for 2" ~ 36" ( DN50 ~ DN900 )

END CONNECTION :

  • Wafer Type, Lug Type, Double Flange Type Ends

FEATURE

  1. Investment Casting
literature

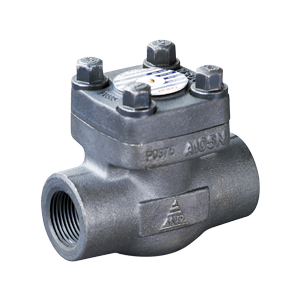

Forged Steel Check Valves

FPC/FSF

Forged Steel Check Valves

PRESSURE & SIZE

  • FSF - Class 150/300/600/900/1500/2500 for 1/2" ~ 2" ( DN8 ~ DN50 )
  • FPC - Class 800/1500/2500 for 1/4" ~ 2" ( DN8 ~ DN50 )

END CONNECTION :

  • Threaded / Socket Weld / Butt Weld / Flanged Ends

FEATURE

  1. Bolted Bonnet

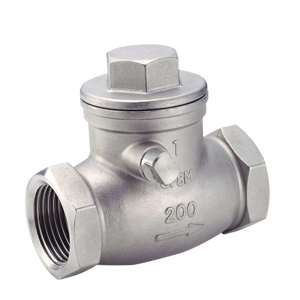

Cast Steel Check Valves

SC-200

Cast Steel Check Valve - General Purpose

PRESSURE & SIZE

  • 200PSI for 1/4" ~ 2" ( DN8 ~ DN50 )

END CONNECTION :

  • Threaded / Socket Weld / Butt Weld Ends

FEATURE

  1. Investment Casting
literature

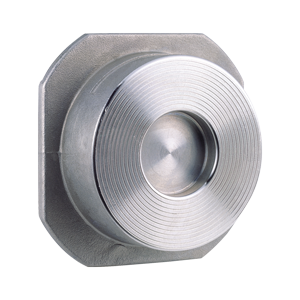

Wafer Type Check Valves

WA-001

Wafer Type Spring Check Valve

PRESSURE & SIZE

  • PN40 for 1/4" ~ 4" ( DN8 ~ DN100 )

END CONNECTION :

  • Wafer Type End

FEATURE

  1. Investment Casting
  2. Horizontal or Vertical Installation
  3. Low Pressure Drop
literature

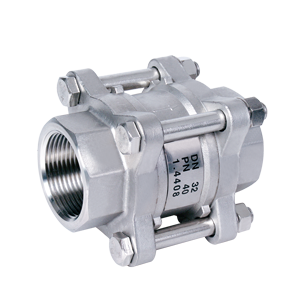

Three Pieces Spring Type Check Valves

WA-002

Three Pieces Spring Type Check Valves

PRESSURE & SIZE

  • 800PSI for 1/4" ~ 4" ( DN8 ~ DN100 )
  • PN40 for 1/4" ~ 4" ( DN8 ~ DN100 )

END CONNECTION :

  • Threaded / Socket Welded / Butt Welded End

FEATURE

  1. Investment Casting
  2. Horizontal or Vertical Installation
  3. Low Pressure Drop
  4. For General Chemical and Industrial Application
literature

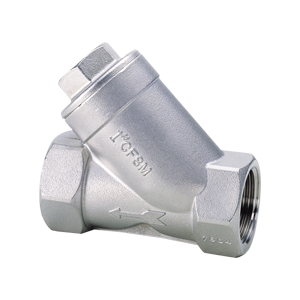

Y type Spring Check Valves

YSP-800

Y type Spring Check Valves

PRESSURE & SIZE

  • 800PSI for 1/4" ~ 2" ( DN8 ~ DN50 )
  • PN40 for 1/4" ~ 2" ( DN8 ~ DN50 )

END CONNECTION :

  • Threaded End

FEATURE

  1. Investment Casting
  2. Screwed Bonnet, Replaceable Seat Design
  3. Low Pressure Drop
  4. For General Chemical and Industrial Application
literature

DESIGN :

  • ANSI B16.34
  • API 594
  • API 602

CERTIFICATE & TEST:

  • PED EU/2014/68 Module H
  • ATEX 2014/34/EU
  • CRN
