Flanged Ball Valve

Fire Safe And Low Emission Approved Ball Valves

Fire Safe Approved Ball Valves

Modentic's flanged ball valves provide the exceptional performance to serve the most critical industrial environment.

Modentic's flanged ball valve line includes one piece, two piece, three piece, and wafer type construction. Fire-safe and low emission approval are also equipped.

Fire Safe & Low Emission Series Flanged Ball Valve

Fire Safe Approved Ball Valves

MD-32

FULL BORE BALL VALVE

SIZE & PRESSURE

  • Class 150/300/600 for 1/2" ~ 6" ( DN15 ~ DN150 )
  • PN16/40 for 1/2" ~ 6" ( DN15 ~ DN150 )

END CONNECTION :

  • Flanged Ends

FEATURE

  1. ISO 5211 Mounting Flange
  2. Blow-Out-Proof Stem Design
  3. Anti-Static Device
  4. Handle With Locking Device
literature

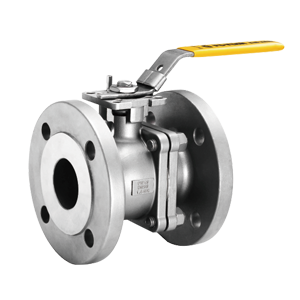

MD-28

FULL BORE BALL VALVE

PRESSURE & SIZE

  • Class 150/300 for 1/2" ~ 6" ( DN15 ~ DN150 )
  • PN16/40 for 1/2" ~ 6" ( DN15 ~ DN150 )
  • JIS 10K / JIS 20K , 15A ~ 150A

END CONNECTION :

  • Flanged Ends

FEATURE

  1. ISO 5211 Direct Mounting Flange
  2. Blow-Out-Proof Stem Design
  3. Anti-Static Device
  4. Handle With Locking Device
literature

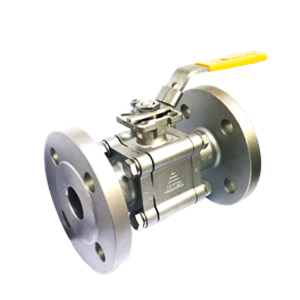

V-655F

FULL BORE BALL VALVE

PRESSURE & SIZE

  • PN16/40 for 1/4" ~ 2" ( DN8 ~ DN50 )

END CONNECTION :

  • Flanged Ends

FEATURE

  1. ISO 5211 Direct Mounting Flange
  2. Blow-Out-Proof Stem Design
  3. Anti-Static Device
  4. Handle With Locking Device
literature

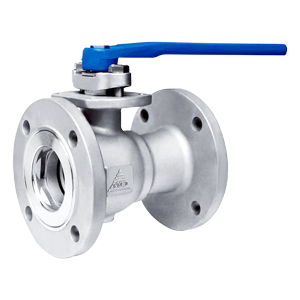

MD-51

MD-51

1PC REDUCED BORE FLANGED BALL VALVE
PRESSURE & SIZE
  • ANSI Class 150/300
  • Reduced Bore 1/2" ~ 6" (DN15 ~ DN150)
FEATURE
  1. Investment Casting Construction
  2. ISO 5211 Mounting Flange ( Non-Direct )
  3. Blow-Out-Proof Stem Design
  4. Anti-Static Devic
  5. Face to Face : ANSI B16.10
  6. Flange Dimension : ANSI B16.5
  7. FCD Handle
literature

ANSI Class150 ANSI Class300

DESIGN :

  • ANSI B16.34
  • API 608 Design
  • NACE MR-0175 / ISO 15156
  • API 6D
  • ISO 14313
  • ISO 17292

CERTIFICATE & TEST:

  • API 607 Fire Safe Approved
  • ISO 10497 Fire Safe Approved
  • TALUFT / ISO 15848-1 Fugitive Emission Approved
  • PED EU/2014/68 Module H
  • ATEX 2014/34/EU
  • CRN
  • ABS Type Approved

General Purpose Series

MD-27

MD-27

2 PIECE FLANGED BALL VALVE

PRESSURE

  • Class 150/300/600 for 1/2" ~ 8" (DN15 ~ DN200)
  • PN16/40 for1/2" ~ 6" (DN15 ~ DN150)
  • JIS 10K / JIS 20K , 15A ~ 150A

FEATURE

  1. Investment Casting Construction
  2. ISO 5211 Mounting Flange
  3. Blow-Out-Proof Stem Design
  4. Anti Static Device
  5. Handle With Locking Device

END CONNECTION :

  • Flanged Ends

Material :

  • Stainless Steel / Carbon Steel

SIZE

  • Full Bore 1/2" ~ 8" (DN15 ~ DN200)
literature

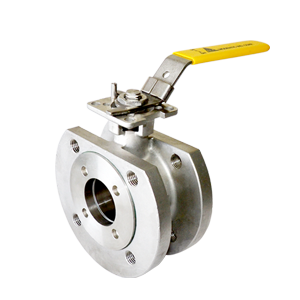

MD-57D

1PC FULL BORE WAFER BALL VALVE

PRESSURE & SIZE

  • Class 150 for 1/2" ~ 8" (DN15 ~ DN150)
  • PN16/40 for1/2" ~ 6" (DN15 ~ DN150)

END CONNECTION :

  • Flanged End

FEATURE

  1. ISO 5211 Direct Mounting Flange
  2. Blow-Out-Proof Stem Design
  3. Anti-Static Device
  4. Handle With Locking Device
literature

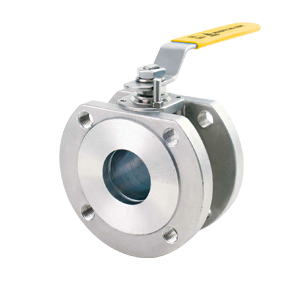

MD-57

1PC FULL BORE WAFER BALL VALVE

PRESSURE & SIZE

  • Class 150 for 1/2" ~ 8" (DN15 ~ DN150)
  • PN16/40 for1/2" ~ 6" (DN15 ~ DN150)

END CONNECTION :

  • Flanged End

FEATURE

  1. ISO 5211 Mounting Flange
  2. Blow-Out-Proof Stem Design
  3. Anti-Static Device
  4. Handle With Locking Device
literature

DESIGN :

  • ANSI B16.34
  • NACE MR-0175 / ISO 15156

CERTIFICATE & TEST:

  • PED EU/2014/68 Module H
  • ATEX 2014/34/EU
  • CRN
