Tank Bottom Ball Valves

Fully Sanitary Design For Your Tanks

tank bottom valves

The standard tank pads of Modentic tank bottom valve are designed to be welded with the inside tank surface so that it is possible to position the ball in the correct position to achieve optimal flow. They include a unique radius that facilitates flow to the valve and reduces dead space where media could stagnate.

We manufacture

  • Hastelloy C276 Tank Bottom Ball Valves / Hastelloy C22 Tank Bottom Ball Valves
  • Tank Bottom Valves For Sanitary Tanks
  • Tank Bottom Valves For Vessels

Sanitary Flush Tank Valve

tank bottom valve manufacturers

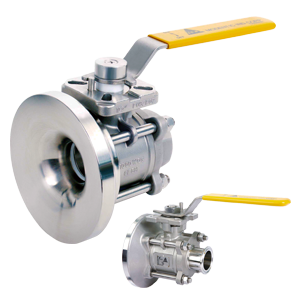

V-Z58

3PC Flush Bottom Ball Valves

SIZE & PRESSURE

  • 1000PSI (PN63) for 1/2" ~ 2" (DN15 ~ DN50)
  • 720PSI (PN40) for 2-1/2" ~ 4" (DN65 ~ DN100)

FEATURE

  1. Investment Casting Construction
  2. ISO 5211 Direct Mounting Flange
  3. Blow-Out-Proof Stem Design
  4. Anti-Static Device
  5. Handle With Locking Device

END CONNECTION :

  • Tri-Clamp End + Tank End
  • Tube End: ASME BPE/ISO 1127/DIN 11850 + Tank End

Material :

  • CF8M / SS316
  • CF3M / SS316L / Hastelloy C276

DESIGN :

  • ANSI B16.34
  • BPE-2005

CERTIFICATE :

  • FDA Regulatory Status
  • ISO 9001
  • PED EU/2014/68 Module H
  • CRN
