Modentic's globe valves provide the exceptional flow control performance to serve the most critical industrial environment.

Modentic's globe valve line includes cast steel and forge steel type construction.

Cast/Forged Steel Globe Valves

Cast Steel Globe Valves

GBF

API 623 CAST STEEL GLOBE VALVE

SIZE & PRESSURE

  • Class 150/300/600/900/1500/2500 for 1/2" ~ 36" ( DN15 ~ DN900 )
  • PN16/40 for 1/2" ~ 36" ( DN15 ~ DN900 )

END CONNECTION :

  • Raised Face/Flat Face/RTJ Flanged Ends

FEATURE

  1. Rising Stem
  2. OS&Y Design
  3. Bolted Bonnet
literature

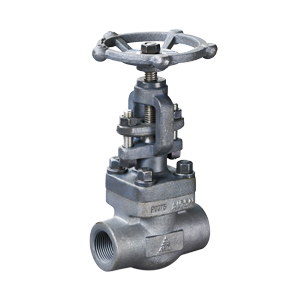

FGB/FGBF

Forged Steel Globe Valves

PRESSURE & SIZE

  • FGBF - Class 150/300/600/900/1500/2500 for 1/2" ~ 2" ( DN8 ~ DN50 )
  • FGB - Class 800/1500/2500 for 1/4" ~ 2" ( DN8 ~ DN50 )

END CONNECTION :

  • Threaded / Socket Weld / Butt Weld / Flanged Ends

FEATURE

  1. Rising Stem
  2. OS&Y Design
  3. Bolted Bonnet

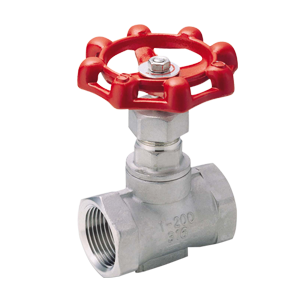

GB-200

Cast Steel Globe Valve - General Purpose

PRESSURE & SIZE

  • 200PSI for 1/4" ~ 2" ( DN8 ~ DN50 )

END CONNECTION :

  • Threaded / Socket Welded / Butt Welded End

FEATURE

  1. Non Rising Stem
  2. Investment Casting
literature

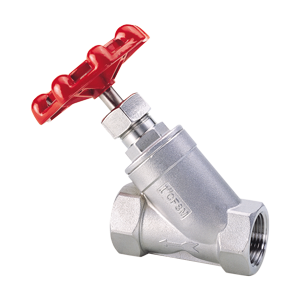

YGB-800

Y-Type Cast Steel Globe Valve - General Purpose

PRESSURE & SIZE

  • 800PSI for 1/4" ~ 2" ( DN8 ~ DN50 )

END CONNECTION :

  • Threaded / Socket Welded / Butt Welded End

FEATURE

  1. Non Rising Stem
  2. Investment Casting
  3. Replaceable Seat Design
literature

DESIGN :

  • ANSI B16.34
  • API 623
  • API 602

CERTIFICATE & TEST:

  • PED EU/2014/68 Module H
  • ATEX 2014/34/EU
  • CRN
