Jacketed Ball Valves Manufacturer

Keep your media temperature at the desired level with our jacketed ball valves

Jacketed Ball Valves

Modentic Jacketed ball valves have all the advantages of a 2-way valve but with added safety and performance. Our jacketed valves are designed for use with media that may crystallize or freeze and should therefore be protected.

Jacketed Ball Valves

Jacketed Ball Valves

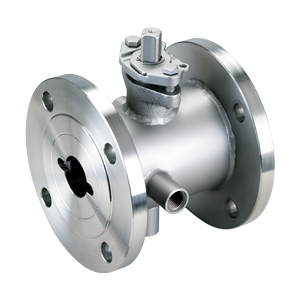

MD-22J

Full Bore Jacketed Ball Valve

SIZE & PRESSURE

  • 1-1/2"×1/2"~10"×8" (DN15×DN40~DN200×DN250)
  • Class 150 / PN 16 / JIS10K

FEATURE

  1. Invenstment Casting Component
  2. ISO 5211 Mounting Flange
  3. Blow-Out-Proof Stem Design
  4. Anti-Static Device
  5. For General Chemical and Industrial application
  6. Cast Bosses for Bleed / Drain Port.

END CONNECTION :

  • Flanged Ends

Temperature Range :

  • -4°F to 428°F (-20°C to 220°C)

Material :

  • SS316 / SS304 / SS316L / WCB
literature

DESIGN :

  • ANSI B16.34
  • API 598 Design
  • Jacket Design
  • ISO 5211 Mounting Flange
  • Blow-Out-Proof Stem Design
  • Anti-Static Device

CERTIFICATE & TEST:

  • PED EU/2014/68 Module H
  • ATEX 2014/34/EU
  • CRN
  • ABS Type Approved
