3 Piece Ball Valve
For The Most Critical Applications
Fire Safe And Low Emission Approved 3-Piece Ball Valves
Modentic Heavy duty three piece ball valves are engineered to serve the most critical industrial environment and to meet international standards.
We Manufacture:
- V-PORT 3-Piece Ball Valves
- API 607 Fire Safe 3 Piece Ball Valves / ISO 10497 Fire Safe 3 Piece Ball Valves
- ISO 15848 Approved 3 Piece Ball Valves / Ta-Luft Approved Ball Valves /
- Various Connection Options: (Extened) Socket Weld / (Extened) Butt Weld / Threaded (Male x Female / Male x Male) / Flanged
- Diverse Materials Options (In Stock): 3 Piece Ball Valve Stainless Steel (SS316) / SS316L / (Super) Duplex / Alloy 20 / Titanium-Valves / 904L / Monel / Alloy C276 Alloy 22
Heavy Duty Fire Safe Series
V-655
FULL/REDUCED BORE BALL VALVE
PRESSURE & SIZE
- 1000 - 2000 PSIG
- 1/4" ~ 4" (DN8 ~ DN100)
END CONNECTION :
- Threaded / Socket Weld / Butt Weld / Flanged Ends
FEATURE
- ISO 5211 Direct Mounting Flange
- Blow-Out-Proof Stem Design
- Anti-Static Device
- 8 Bolts Design
- Handle With Locking Device
V-255
FULL/REDUCED BORE BALL VALVE
PRESSURE & SIZE
-
V-255FS -
2000PSI ( PN140 ) for 1/4" ~ 1" ( DN8 ~ DN25 )
1500PSI ( PN100 ) for 1-1/4" ~ 2" ( DN32 ~ DN50 ) -
V-255FSA -
2000PSI ( PN140 ) for 1/2" ~ 1-1/4" ( DN15 ~ DN32 )
1500PSI ( PN100 ) for 1-1/2" ~ 2-1/2" ( DN40 ~ DN65 )
END CONNECTION :
- Threaded / Socket Weld / Butt Weld Ends
FEATURE
- ISO 5211 Mounting Flange (Non-Direct)
- Blow-Out-Proof Stem Design
- Anti-Static Device
- 8 Bolts Design
- Handle With Locking Device

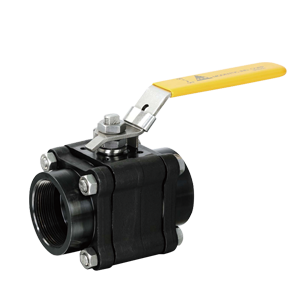

V-755
FULL/REDUCED BORE BALL VALVE
PRESSURE & SIZE
-
V-755FS -
1500PSI ( PN100 ) for 1/2" ~ 2" ( DN15 ~ DN50 ) -
V-755FSA -
1500PSI ( PN100 ) for 1/4" ~ 2" ( DN8 ~ DN50 )
Material
- A105/A105N
- F316/F316L
- F51/F60/F53 (More Options Available)
END CONNECTION :
- Threaded / Socket Weld / Butt Weld Ends
FEATURE
- ISO 5211 Mounting Flange (Non-Direct)
- Forged Steel components
- Blow-Out-Proof Stem Design
- Anti-Static Device
- 8 Bolts Design
- Handle With Locking Device
DESIGN :
- ANSI B16.34
- API 608 Design
- NACE MR-0175 / ISO 15156
- API 6D
- ISO 14313
- ISO 17292
CERTIFICATE & TEST:
- API 607 Fire Safe Approved
- ISO 10497 Fire Safe Approved
- TALUFT / ISO 15848-1 Fugitive Emission Approved
- PED EU/2014/68 Module H
- ATEX 2014/34/EU
- CRN
- ABS Type Approved
General Purpose Series

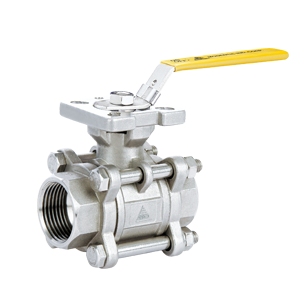

V-158
3PC FULL BORE BALL VALVE
PRESSURE
- 1000PSI (PN63) for 1/4" ~ 2" (DN8 ~ DN50)
- 800PSI (PN40) for 2-1/2" ~ 4" (DN65 ~ DN100)
FEATURE
- Investment Casting Construction
- ISO 5211 Direct Mounting Flange
- Blow-Out-Proof Stem Design
- Anti Static Device
- Handle With Locking Device
END CONNECTION :
- Threaded / Socket Weld / Butt Weld / Ext. Butt Weld Ends
Material :
- Stainless Steel / Carbon Steel
SIZE
- Full Bore 1/4" ~ 4" (DN8 ~ DN100)

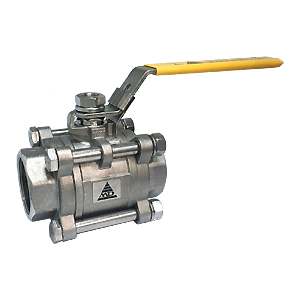

V-205
3PC FULL BORE BALL VALVE
PRESSURE & SIZE
- 1000PSI ( PN63 ) for 1/4" ~ 2" ( DN8 ~ DN50 )
- 800PSI ( PN40 ) for 2-1/2" ~ 4" ( DN65 ~ DN100 )
END CONNECTION :
- Threaded / Socket Weld / Butt Weld Ends
FEATURE
- Investment Cast Body Construction
- In-Line Maintenance
- Blow-Out-Proof Stem Design
- Locking Device ( Option )
- NACE MR0175 is available upon request
- Super Alloy materials for highly corrosive medium are available upon request
DESIGN :
- ANSI B16.34
- API 608 Design
- NACE MR-0175 / ISO 15156
- API 6D
- ISO 14313
- ISO 17292
CERTIFICATE & TEST:
- PED EU/2014/68 Module H
- ATEX 2014/34/EU
- CRN
