Multi Port Ball Valve

Three/Four/Five Way Ball Valves

Three Way Flanged Ball Valves

Modentic 's Multiport valves series are available in different kinds of flow patterns (L / T / X port) and directions (three / four / five way ).

Three Way Ball Valve Series

Three Way Ball Valve ISO5211 Direct Mounting

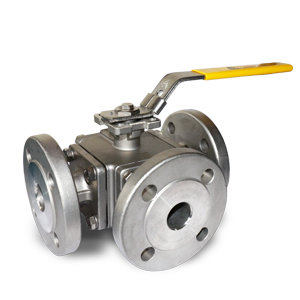

K-314/KF-314

FULL BORE BALL VALVE

SIZE & PRESSURE

  • K-314 1000PSI (PN63) for 1/2" ~ 6" (DN15 ~ DN150)
  • KF-314 Class150/300 (PN16/40) for 1/2" ~ 6" (DN15 ~ DN150)

END CONNECTION :

  • Threaded / Socket Weld / Butt Weld / Flanged Ends

FEATURE

  1. T Port or L Port Design
  2. ISO 5211 Direct Mounting Flange
  3. Blow-Out-Proof Stem Design
  4. Anti-Static Device
  5. Handle With Locking Device
K-314 literature KF-314 literature

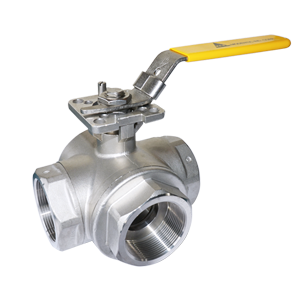

K-318

REDUCED BORE BALL VALVE

PRESSURE & SIZE

  • K-318 1000PSI (PN63) for 1/4" ~ 3" (DN8 ~ DN80)

END CONNECTION :

  • Threaded

FEATURE

  1. T Port or L Port Design
  2. ISO 5211 Direct Mounting Flange
  3. Blow-Out-Proof Stem Design
  4. Anti-Static Device
  5. Handle With Locking Device
literature

K-306

REDUCED BORE BALL VALVE

PRESSURE & SIZE

  • K-306 1000PSI (PN63) for 1/4" ~ 3" (DN8 ~ DN50)

END CONNECTION :

  • Threaded

FEATURE

  1. T Port or L Port Design
  2. Vertical Port Design
  3. Blow-Out-Proof Stem Design
  4. Anti-Static Device
  5. Handle With Locking Device
literature

DESIGN :

  • ANSI B16.34

CERTIFICATE & TEST:

  • PED EU/2014/68 Module H
  • ATEX 2014/34/EU
  • CRN

Four/Five Way Ball Valves Series

V-158

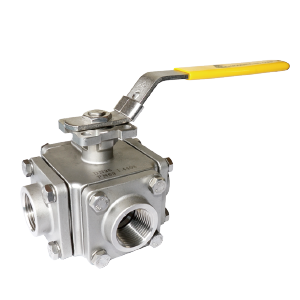

K-315/KF-315

FOUR WAY FULL BORE BALL VALVE

PRESSURE

  • K-315 1000PSI (PN63) for 1/2" ~ 6" (DN15 ~ DN150)
  • KF-315 Class150/300 (PN16/40) for 1/2" ~ 6" (DN15 ~ DN150)

END CONNECTION :

  • Threaded / Socket Weld / Butt Weld / Flanged Ends

FEATURE

  1. T Port or L Port or X Port Design
  2. ISO 5211 Direct Mounting Flange
  3. Blow-Out-Proof Stem Design
  4. Anti-Static Device
  5. Handle With Locking Device

Material :

  • Stainless Steel / Carbon Steel
K-315 literature KF-315 literature

K-316/KF-316

FIVE WAY BALL VALVE

PRESSURE & SIZE

  • K-316 1000PSI (PN63) for 1/2" ~ 6" (DN15 ~ DN150)
  • KF-316 Class150/300 (PN16/40) for 1/2" ~ 6" (DN15 ~ DN150)

END CONNECTION :

  • Threaded / Socket Weld / Butt Weld / Flanged Ends

FEATURE

  1. T Port or L Port or X Port Design
  2. ISO 5211 Direct Mounting Flange
  3. Blow-Out-Proof Stem Design
  4. Anti-Static Device
  5. Handle With Locking Device

DESIGN :

  • ANSI B16.34

CERTIFICATE & TEST:

  • PED EU/2014/68 Module H
  • ATEX 2014/34/EU
  • CRN
