Modentic Y Strainers are engineered for the filter process. It is suited for any filter process in multiple industries. The Modentic y-strainer is particularly robust and easy to clean, which makes it an affordable solution as well as a time saver.

Customized Strainers

We provide non-standard products to fit clients' actual needs. Our customized y strainer valves will make your project run smoothly.

We OFFER

  • Steam strainers
  • Threaded Y Type Strainer / Socket Weld End Y Type Strainer
  • Flanged Y Type Strainer
  • Duplex Strainers
  • Y Strainer With Ball Valve
  • Piping Strainer Valves

Y Type Strainers

y strainer manufacturers

YS-800

General Purpose Y Strainers

SIZE & PRESSURE

  • 800PSI (PN40) for 1/4" ~ 3" (DN8 ~ DN80)

FEATURE

  1. Options: Investment Casting Construction / Forged Construction -
  2. Screen Mesh: 40 ~ 300
  3. Self-cleaning is completed by opening the plug or valve connected to the blow-off outlet.

END CONNECTION :

  • Threaded / Socket Weld / Butt Weld End

Material :

  • CF8M / SS316 / Duplex

Application :

  • Steam
  • Water
  • Chemical
  • Oil & Gas
Y Strainers

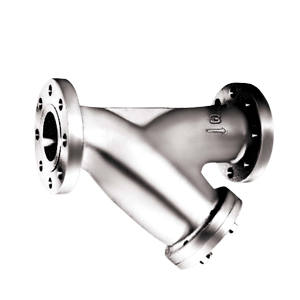

YF-150/YF-300

Heavy Duty Y Strainers

SIZE & PRESSURE

  • PN 40 / PN 60 for DN15 ~ DN400
  • Class 150 / Class 300 for 1/2" ~ 16"
  • JIS 10K /JIS 20K for 15A ~ 400A

FEATURE

  1. Investment Casting Construction
  2. Screen Mesh: 40 ~ 300

END CONNECTION :

  • Flanged End

Material :

  • CF8M
  • WCB
  • Super Alloy Valves

Application :

  • Steam
  • Water
  • Chemical
  • Oil & Gas
Y Strainers

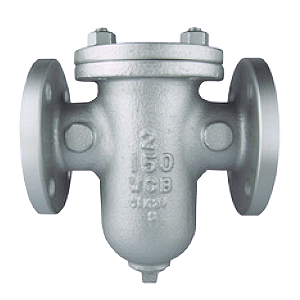

BKS-68

Flanged Basket Strainer

SIZE & PRESSURE

  • Class 150 for 1" ~ 12" (DN15 ~ DN300)

FEATURE

  1. Investment Cast Body Construction
  2. Perforated Screen in 1mm hole for 1" ~ 3" ; 3mm hole for 4" ~ 12"
  3. Mesh Screen is available upon request
  4. Mesh Screen size from 20mesh to 400mesh

END CONNECTION :

  • Flanged Ends, RF

Material :

  • CF8M
  • WCB
  • Super Alloy Valves

Application :

  • Steam
  • Water
  • Chemical
  • Oil & Gas

DESIGN :

  • ANSI B16.34

CERTIFICATE :

  • ISO 9001
  • PED EU/2014/68 Module H
  • CRN
