Cast Steel Gate Valves | Forged Steel Gate Valves
API 600/603 Design for Cast Steel Gate Valves
API 602 Design for Forged Steel Gate Valves
Modentic's gate valves provide the exceptional performance to serve the most critical industrial environment.
Modentic's gate valve line includes cast steel and forge steel type construction.
Cast/Forged Steel Gate Valves
GTF
API 600/603 CAST STEEL GATE VALVE
SIZE & PRESSURE
- Class 150/300/600/900/1500/2500 for 1/2" ~ 36" ( DN15 ~ DN900 )
- PN16/40 for 1/2" ~ 36" ( DN15 ~ DN900 )
END CONNECTION :
- Raised Face/Flat Face/RTJ Flanged Ends
FEATURE
- Rising Stem
- OS&Y Design
- Bolted Bonnet

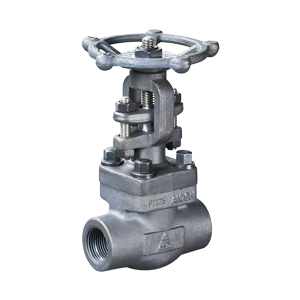

FGT/FGTF
Forged Steel Gate Valves
PRESSURE & SIZE
- FGTF - Class 150/300/600/900/1500/2500 for 1/2" ~ 2" ( DN8 ~ DN50 )
- FGT - Class 800/1500/2500 for 1/4" ~ 2" ( DN8 ~ DN50 )
END CONNECTION :
- Threaded / Socket Weld / Butt Weld / Flanged Ends
FEATURE
- Rising Stem
- OS&Y Design
- Bolted Bonnet

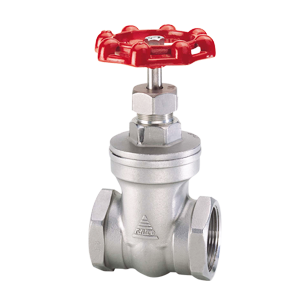

GT-200
Cast Steel Gate Valve - General Purpose
PRESSURE & SIZE
- 200PSI for 1/4" ~ 2" ( DN8 ~ DN50 )
END CONNECTION :
- Threaded / Socket Welded/ Butt Welded End
FEATURE
- Non Rising Stem
- Investment Casting
DESIGN :
- ANSI B16.34
- API 600/603
- API 602
CERTIFICATE & TEST:
- PED EU/2014/68 Module H
- ATEX 2014/34/EU
- CRN
