Modentic Sanitary Butterfly Valve is designed for highly hygienic requirements in the pharmaceutical, food, cosmetic and beverage industries. Modentic Hygienic Butterfly Valve is a self-standing valve that comprises a disc-shaped disc with the sealing surface on the edge and an annular valve seat.

Sanitary butterfly valves are available in Manual, Air Actuated, or Electrical Actuated. Clamp or Weld ends are standard. Other connections are available upon request.

Seat materials include Silicone, Viton®, and EPDM. Sizes range from 1˝ through 4˝. All product contact surfaces are available in either 304 316L stainless steel or even high nickel alloy such as alloy C22 and alloy C276.

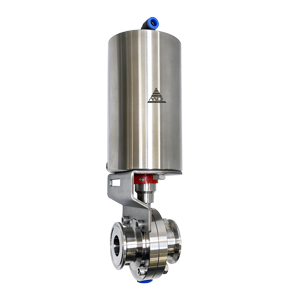

Sanitary butterfly valve with pneumatic actuator

BV-300

PNEUMATICALLY OPERATED BUTTERFLY VALVE

SIZE & PRESSURE

  • 1" to 4"  10 Barg at 20°C
  • 5.5 Bar Open and Close

FEATURE

  1. Corrosion-resistant stainless steel body
  2. Easy to clean sanitary construction
  3. Air to open, spring to close
  4. Maintenance-free actuator

END CONNECTION :

  • Clamp, Butt-Weld
  • Tube Ends: ASME BPE / ISO 1127 / DIN 11850

Temperature Range :

  • 15°F to 200°F (-10°C to 95°C)

Material :

catalogue
sanitary butterfly valves manufacturers

BV-300

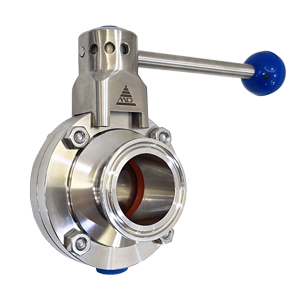

CLAMP SANITARY BUTTERFLY VALVE

SIZE & PRESSURE

  • 1" to 4"  10 Barg at 20°C

FEATURE

  1. Custom fabricate to meet customers' requests
  2. 100% tested and inspected
  3. Seats meet FDA requirements

END CONNECTION :

  • Clamp
  • Tube Ends: ASME BPE / ISO 1127 / DIN 11850

Temperature Range :

  • 15°F to 200°F (-10°C to 95°C)

Material :

Seat Materials:

  • Silicone, EPDM, Viton®
catalogue
hygienic butterfly valve manufacturers

BV-300

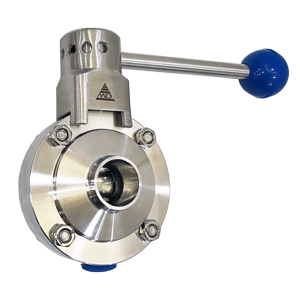

WELD SANITARY BUTTERFLY VALVE

SIZE & PRESSURE

  • 1" to 4"  10 Barg at 20°C

FEATURE

  1. Custom fabricate to meet customers' requests
  2. 100% tested and inspected
  3. Seats meet FDA requirements

END CONNECTION :

  • Butt-Weld
  • Tube Ends: ASME BPE / ISO 1127 / DIN 11850

Temperature Range :

  • 15°F to 200°F (-10°C to 95°C)

Material :

Seat Materials:

  • Silicone, EPDM, Viton®
catalogue

CERTIFICATE :

  • FDA Regulatory Status
  • ISO 9001
  • PED EU/2014/68 Module H
