Modentic Heavy duty control ball valves are engineered to serve the most critical industrial environment and to meet international standards.

The precise flow control and high CV characteristic of Modentic control ball valve is the good partner for your control flow system.

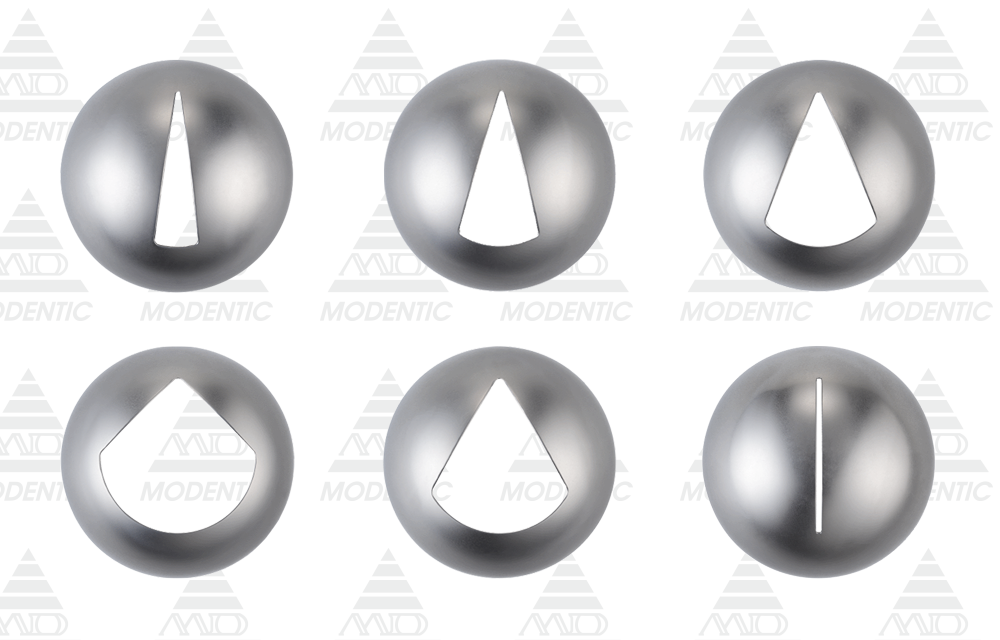

V PORT Ball Valves

Modentic V port Ball Valves Series

Slot / 15 / 30 / 45 / 60 / 90 Vport Ball

Heavy Duty Fire Safe Series

Pneumatic Actuated Trunnion Ball Valve

SR-64

FULL BORE BALL VALVE

PRESSURE & SIZE

  • Class 150/300/600/900/1500 for 1/2" ~ 24" ( DN15 ~ DN600 )
  • PN16/40/63/100/160 for 1/2" ~ 24" ( DN15 ~ DN600 )

END CONNECTION :

  • Flanged Ends

FEATURE

  1. ISO 5211 Mounting Flange
  2. Blow-Out-Proof Stem Design
  3. Anti-Static Device
  4. Handle With Locking Device

AVAILABLE ACCESSORIES

  1. Solenoid Valve
  2. Positioner
  3. Limit Switch
  4. Air Filter/Regulator

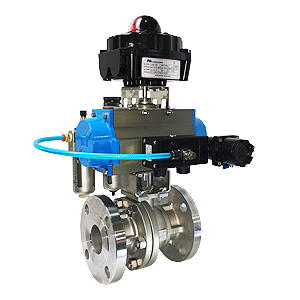

Fire Safe Approved Ball Valves

SR-32

FULL BORE BALL VALVE

SIZE & PRESSURE

  • Class 150/300/600 for 1/2" ~ 6" ( DN15 ~ DN150 )
  • PN16/40 for 1/2" ~ 6" ( DN15 ~ DN150 )

END CONNECTION :

  • Flanged Ends

FEATURE

  1. ISO 5211 Mounting Flange
  2. Blow-Out-Proof Stem Design
  3. Anti-Static Device
  4. Handle With Locking Device

AVAILABLE ACCESSORIES

  1. Solenoid Valve
  2. Positioner
  3. Limit Switch
  4. Air Filter/Regulator

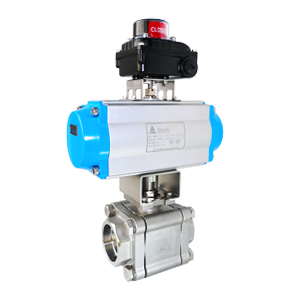

Pneumatic Actuated Three Piece Ball Valve

SR-255/SR-655

FULL BORE BALL VALVE

PRESSURE & SIZE

  • 2000PSI for 1/4" ~ 1" ( DN8 ~ DN25 )
  • 1500PSI for 1-1/4" ~ 2" ( DN32 ~ DN50 )
  • 1500PSI for 2-1/2" ~ 4" ( DN65 ~ DN100 )

END CONNECTION :

  • Threaded / Socket Weld / Butt Weld End

FEATURE

  1. ISO 5211 Mounting Flange (SR-255)
  2. ISO 5211 Direct Mounting Flange (SR-655)
  3. Blow-Out-Proof Stem Design
  4. Anti-Static Device
  5. Handle With Locking Device

AVAILABLE ACCESSORIES

  1. Solenoid Valve
  2. Positioner
  3. Limit Switch
  4. Air Filter/Regulator

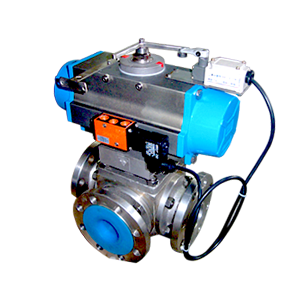

Pneumatic Actuated Multi Way Ball Valve

SR-314

FULL BORE BALL VALVE

PRESSURE & SIZE

  • Class 150/300 for 1/2" ~ 6" ( DN15 ~ DN150 )
  • PN16/40 for 1/2" ~ 6" ( DN15 ~ DN150 )
  • 1000PSI for 1/2" ~ 3" ( DN15 ~ DN80 )

END CONNECTION :

  • Threaded / Socket Weld / Butt Weld / Flanged Ends

FEATURE

  1. ISO 5211 Direct Mounting Flange
  2. Blow-Out-Proof Stem Design
  3. Anti-Static Device
  4. Handle With Locking Device

AVAILABLE ACCESSORIES

  1. Solenoid Valve
  2. Positioner
  3. Limit Switch
  4. Air Filter/Regulator

DESIGN :

  • ANSI B16.34
  • API 608 Design
  • NACE MR-0175 / ISO 15156
  • API 6D
  • ISO 14313
  • ISO 17292

CERTIFICATE & TEST:

  • API 607 Fire Safe Approved
  • ISO 10497 Fire Safe Approved
  • TALUFT / ISO 15848-1 Fugitive Emission Approved
  • PED EU/2014/68 Module H
  • ATEX 2014/34/EU
  • CRN
  • ABS Type Approved
