Metal Seated Ball Valves Manufacturer
Metal Seated Ball Valves For High Temperature Application
Modentic's metal seated ball valves are suitable for demanding applications in which high temperatures and abrasive solids are present. Typical applications include accumulating media, solids in the line, and erosive attack on coatings and materials.
Metal Seated Ball Valves
MD-52Q
FULL BORE BALL VALVE
SIZE & PRESSURE
- Class 150/300 for 1/2" ~ 8" (DN15 ~ DN200)
- PN16/40 for 1/2" ~ 8" (DN15 ~ DN200)
END CONNECTION :
- Flanged Ends
FEATURE
- ISO 5211 Mounting Flange
- Blow-Out-Proof Stem Design
- Anti-Static Device
TIGHTNESS RATES :
- ΔP : ASME / FCI 70-2 Class IV
MD-52QT
FULL BORE BALL VALVE
PRESSURE & SIZE
- Class 150/300 for 4" ~ 8" (DN100 ~ DN200)
- PN16/40 for 4" ~ 8" (DN100 ~ DN200)
END CONNECTION :
- Flanged Ends
FEATURE
- ISO 5211 Mounting Flange
- Blow-Out-Proof Stem Design
- Anti-Static Device
- Trunnion Mounted Type
TIGHTNESS RATES :
- ΔP : ASME / FCI 70-2 Class IV

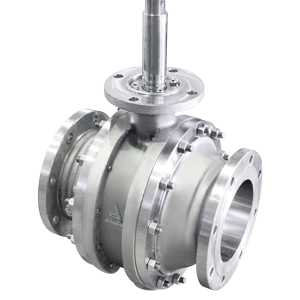

MD-54Q
FULL BORE BALL VALVE
PRESSURE & SIZE
- Class 150/300 for 2" ~ 16" (DN50 ~ DN400)
END CONNECTION :
- Flanged Ends
FEATURE
- Blow-Out-Proof Stem Design
- Anti-Static Device
- Trunnion Mounted Type
TIGHTNESS RATES :
- ΔP : ASME / FCI 70-2 Class IV

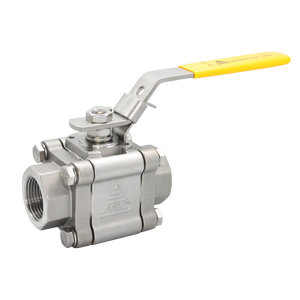

V-255Q
FULL/REDUCED BORE BALL VALVE
PRESSURE & SIZE
- 2000PSI (PN140) for 1/2" ~ 1" (DN15 ~ DN25)
- 1500PSI (PN100) for 1-1/4" ~ 2" (DN32 ~ DN50)
END CONNECTION :
- Threaded / Socket Weld / Butt Weld Ends
FEATURE
- ISO 5211 Mounting Flange (Non-Direct)
- Blow-Out-Proof Stem Design
- Anti-Static Device
- 8 Bolts Design
- Handle With Locking Device
TIGHTNESS RATES :
- ΔP : ASME / FCI 70-2 Class IV
DESIGN :
- ANSI B16.34
- API 608 Design
- NACE MR-0175 / ISO 15156
- API 6D
- ISO 14313
- ISO 17292
CERTIFICATE & TEST :
- API 607 Fire Safe Approved
- ISO 10497 Fire Safe Approved
- TALUFT / ISO 15848-1 Fugitive Emission Approved
- PED EU/2014/68 Module H
- ATEX 2014/34/EU
- CRN
- ABS Type Approved
