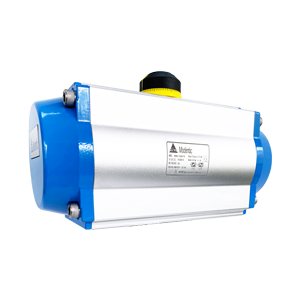

High Temperature Actuator

Types

• Spring Return
• Double Acting

Torque Range :

• 9 N-M to 3850 N-M at 6 Barg air supply

Temperature Range :

• -20°C to 150°C (-4°F to 302°F)

FEATURE

1. High cycle-life
2. NAMUR Solenoid and Limit Switch Mounting
3. Direct Mount Connections
4. Position Indicator

PRESSURE & SIZE

• Class 150/300/600/900/1500 for 1/2" ~ 24" ( DN15 ~ DN600 )
• PN16/40/63/100/160 for 1/2" ~ 24" ( DN15 ~ DN600 )

END CONNECTION :

• Flanged Ends

Temperature Range :

• -20°C to 150°C (-4°F to 302°F)

FEATURE

1. ISO 5211 Mounting Flange
2. Blow-Out-Proof Stem Design
3. Anti-Static Device
4. Handle With Locking Device

AVAILABLE ACCESSORIES

1. Solenoid Valve
2. Positioner
3. Limit Switch
4. Air Filter/Regulator

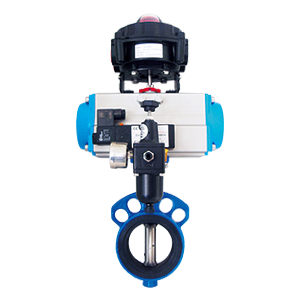

SIZE & PRESSURE

• Class 150/300/600 for 1-1/2" ~ 36" ( DN40 ~ DN900 )
• PN10/40 for 1-1/2" ~ 36" ( DN40 ~ DN900 )

END CONNECTION :

• Wafer / Lug / Flange

Temperature Range :

• -20°C to 150°C (-4°F to 302°F)

FEATURE

1. Pneumatic Actuated
2. Lugged PN16
3. Epoxy Coated Cast Ductile Iron Body
4. 316 Stainless Steel Disc and Shaft

AVAILABLE ACCESSORIES

1. Solenoid Valve
2. Positioner
3. Limit Switch
4. Air Filter/Regulator

PRESSURE & SIZE

• Class 150/300 for 1/2" ~ 6" ( DN15 ~ DN150 )
• PN16/40 for 1/2" ~ 6" ( DN15 ~ DN150 )
• 1000PSI for 1/2" ~ 3" ( DN15 ~ DN80 )

END CONNECTION :

• Threaded / Socket Weld / Butt Weld / Flanged Ends

Temperature Range :

• -20°C to 150°C (-4°F to 302°F)

FEATURE

1. ISO 5211 Direct Mounting Flange
2. Blow-Out-Proof Stem Design
3. Anti-Static Device
4. Handle With Locking Device

AVAILABLE ACCESSORIES

1. Solenoid Valve
2. Positioner
3. Limit Switch
4. Air Filter/Regulator
