High Temperature Butterfly Valves
High Temperature Butterfly Valve With Actuator Options Available
Features :
- 500°C (932°F) Maximum Operating Temperature
- Simple and Compact Construction
- Easy Installation and Maintenance
- Minimized Operating Torque
- Excellent Flow Regulating Capability
- API 607 Fire Safe Approved
- API 609 Certificate
High Temperature Double Eccentric Butterfly Valve
VF-824
DOUBLE ECCENTRIC BUTTERFLY VALVE
PRESSURE & SIZE
- Class 150/300/600 (PN10 ~ PN40)
- 2" ~ 40" (DN50 ~ DN1000)
END CONNECTION :
- Wafer / Lug / Flange
Temperature Range :
- -40°C to 500°C (-40°F to 932°F)
FEATURE
- API 607 Fire Safe Approved
- API 609 Certificate
- Double eccentric line design
- High performance butterfly valve
- Mounting flange dimension according ISO 5211 standard or client special request
DESIGN :
- API 609
- ASMEB16.5
- ASME B16.10
- ASME B 16.5
- API 598
CERTIFICATE & TEST:
- API 609 Approved
- API 607 Fire Safe Approved
- ISO 10497 Fire Safe Approved
- TALUFT / ISO 15848-1 Fugitive Emission Approved
- PED EU/2014/68 Module H
- ATEX 2014/34/EU
- CRN
- ABS Type Approved

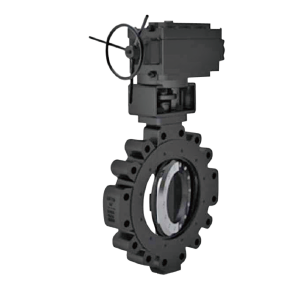

High Temperature Triple Eccentric Butterfly Valve
VF-834
TRIPLE ECCENTRIC BUTTERFLY VALVE
PRESSURE & SIZE
- Class 150/300/600 (PN10 ~ PN40)
- 2" ~ 40" (DN50 ~ DN1000)
END CONNECTION :
- Wafer / Lug / Flange
Temperature Range :
- -40°C to 500°C (-40°F to 932°F)
FEATURE
- API 609 Certificate
- Triple eccentric line design
- Mounting flange dimension according ISO 5211 standard or client special request
DESIGN :
- API 609
- ASMEB16.5
- ASME B16.10
- ASME B 16.5
- API 598
CERTIFICATE & TEST:
- API 609 Approved
- API 607 Fire Safe Approved
- ISO 10497 Fire Safe Approved
- TALUFT / ISO 15848-1 Fugitive Emission Approved
- PED EU/2014/68 Module H
- ATEX 2014/34/EU
- CRN
- ABS Type Approved
