Stainless Steel Safety Valve
Modentic safety valves are tested against standards to ensure they meet or exceed industry standards.
Reliable and affordable
Modentic safety relief valve is suitable for the relief of steam, air and natural gas. The valve is made of bronze or stainless steel.
Features and advantages
- A variety of pipeline connections: Threaded safety valves and Flanged safety valves.
- High Lift Type / Low-Lift Type / Full Bore Type
- Lever Type / Sealing Type
Safety Valves - Companct Design And High Performace

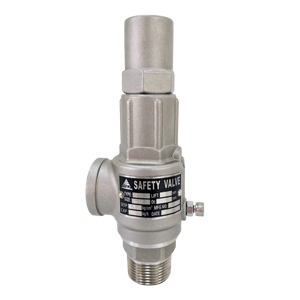

Stainless Steel High Lift Type
Load Type
- Spring loaded safety valve
Size & Working Pressure
- 1/2" to 2-1/2" (DN15 ~ DN65)
- 0.2 ~ 100kg/cm²
FEATURE
- Investment Cast Body Construction
- Availability : Lever Type / Sealing Type
END CONNECTION :
- Threaded / Flanged Ends
Sealing Type
- Metal to Metal
- Disc Insert VITON
- Disc Insert PTFE
Material :
- SS316 / CF8 / CF8M
Usable Fluids :
- Water / Non-corrosive gas / Corrosive gas / Air and steam

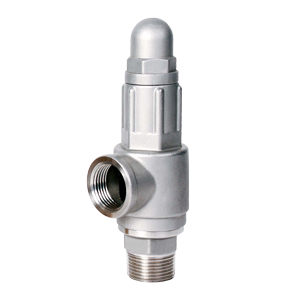

Stainless Steel Low Lift Type
Load Type
- Spring loaded safety valve
Size & Working Pressure
- 1/2" to 2-1/2" (DN15 ~ DN65)
- 0.2 ~ 20kg/cm²
FEATURE
- Investment Cast Body Construction
- Availability : Lever Type / Sealing Type
END CONNECTION :
- Threaded / Flanged Ends
Sealing Type
- Metal to Metal
- Disc Insert VITON
- Disc Insert PTFE
Material :
- SS316 / CF8 / CF8M
Usable Fluids :
- Water / Non-corrosive gas / Corrosive gas / Air and steam

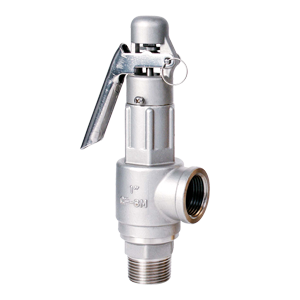

Full Bore Type
Load Type
- Spring loaded safety valve
Size & Working Pressure
- 1/2" to 2-1/2" (DN15 ~ DN65)
- 0.2 ~ 25kg/cm²
FEATURE
- Investment Cast Body Construction
- Availability : Lever Type / Sealing Type
END CONNECTION :
- Threaded / Flanged Ends
Sealing Type
- Metal to Metal
- Disc Insert VITON
- Disc Insert PTFE
Material :
- SS316 / CF8 / CF8M
Usable Fluids :
- Water / Non-corrosive gas / Corrosive gas / Air and steam
CERTIFICATE :
- ISO 9001
- ISO 4126
- EN 10204-3.1 MTR
