V-C06

2PC FULL BORE BALL VALVE
PRESSURE
  • 1000PSI (PN63)
FEATURE
  1. Made by Bar Material
  2. Blow-Out-Proof Stem Design
  3. Regular Handle
END CONNECTION :
  • Threaded Ends
Design :
  • ANSI B16.34
Material :
  • Titanium (ASTM B348 GR.2/GR.5)
CERTIFICATE :
  • ISO 9001
  • PED EU/2014/68 Module H
  • CRN
SIZE
  • Full Bore 1/4" ~ 2" (DN8 ~ DN50)

V-C05

3PC FULL BORE BALL VALVE
PRESSURE
  • 1000PSI (PN63)
FEATURE
  1. Made by Bar Material
  2. Blow-Out-Proof Stem Design
  3. Regular Handle
END CONNECTION :
  • Threaded / Socket Weld / Butt Weld Ends
Design :
  • ANSI B16.34
Material :
  • Titanium (ASTM B348 GR.2/GR.5)
CERTIFICATE :
  • ISO 9001
  • PED EU/2014/68 Module H
  • CRN
SIZE
  • Full Bore 1/4" ~ 2" (DN8 ~ DN50)

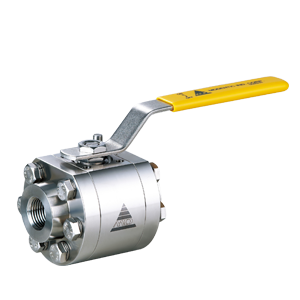

HPV-40/41

3PC HIGH PRESSURE BALL VALVES
PRESSURE
  • 3000 PSI(PN210) as HPV-40
  • 6000 PSI(PN420) as HPV-41
FEATURE
  1. Made by Bar Material
  2. ISO 5211 Mounting Flange(Non-Direct)
  3. Blow-Out-Proof Stem Design
  4. Anti-Static Device
  5. High Pressure Teflon Kits used(Delrin® / Peek)
END CONNECTION :
  • Threaded / Socket Weld / Butt Weld Ends
Design :
  • ANSI B16.34
Material :
  • Alloy20 / Hastelloy C / Duplex Super Duplex / Monel 400 / SS904L
CERTIFICATE :
  • API 607 5th Edition Fire Safe Approved
  • ABS Type Approved
  • ISO 9001
  • PED EU/2014/68 Module H
  • CRN
SIZE
  • 1/4" ~ 2" (DN8 ~ DN50)
literature

HPV-40 HPV-41

MD-C2

2PC FULL BORE FLANGED BALL VALVE
PRESSURE
  • ANSI Class 150
FEATURE
  1. Made by Bar Material
  2. Blow-Out-Proof Stem Design
  3. Face to Face: ANSI B16.10
  4. Flange Dimension: ANSI B16.5
  5. Regular Handle
END CONNECTION :
  • Flanged End , RF
Design :
  • ANSI B16.34
Material :
  • Titanium (ASTM B348 GR.2/GR.5)
Certificate
  • ISO 9001
  • PED EU/2014/68 Module H
  • CRN
SIZE
  • 1/4" ~ 2" (DN8 ~ DN50)
Customize

MD-310

3PC FULL/REDUCED BORE BALL VALVES
PRESSURE
  • 1000 PSI (PN63)
FEATURE
  1. Made by Bar Material
  2. T-Port or L-Port
  3. Blow-Out-Proof Stem Design
  4. Anti-Static Device
  5. Regular Handle
END CONNECTION :
  • Threaded / Socket Weld / Butt Weld Ends
Design :
  • ANSI B16.34
Material :
  • Alloy20 / Hastelloy C / Duplex
  • Super Duplex / Monel 400 / SS904L
Certificate
  • ISO 9001
  • PED EU/2014/68 Module H
  • CRN
SIZE
  • 1/2" ~ 2" (DN15 ~ DN50)
Customize
