3-Way Sanitary Valve Manufacturer - Hygienic Ball Valves
Aspetic Sanitary Ball Valve / Food Grade Ball Valve
ASME BPE / FDA / USP / 3A Compliant Sanitary Ball Valves
Modentic high purity sanitary Ball valves are engineered for the pure process. It is suited for the pharmaceutical, biotechnology, semiconductor and food industries.
We Offer:
- USA 3A Certified Sanitary Ball Valves
- V-PORT Sanitary Ball Valves
- High nickel alloy valves: Alloy C276 / Alloy C22
- 2-way Sanitary Ball valves / 3-way Sanitary Ball valves / 4-way Sanitary Ball valves
- The ASME BPE compliant and true bore design ensure cleanability on the product line
- Stainless steel with Low ferrite < 1% / Stainless steel with Low ferrite < 3%
- Stainless steel with Low Sulfur
- Cavity Filled Ball Valve Option Available

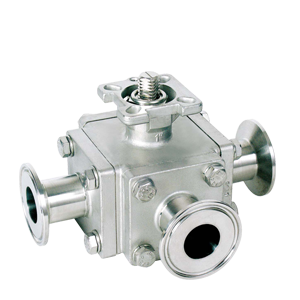

3-Way Sanitary Valves
K-Z04TC / EB
3 WAY / 4 WAY SANITARY BALL VALVE
PRESSURE
- 1000PSI (PN63)
FEATURE
- Investment Casting Construction
- ISO 5211 Direct Mounting Flange
- T-Port or L-Port
- Blow-Out-Proof Stem Design
- Anti-Static Device (Option)
- Design acorrding to 3A
- Handle With Locking Device (Option)
- Cavity Filled Ball Valve Option Available
END CONNECTION :
- Tri-Clamp / Tube Ends
Material :
- Stainless Steel
SIZE
- Tube Bore 1/2" ~ 2" (DN15 ~ DN50)

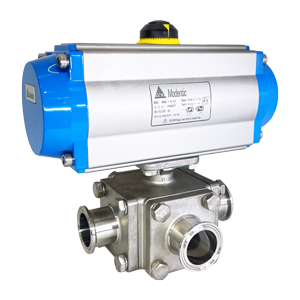

Actuated Sanitary Ball Valve
3 WAY / 4 WAY ACTUATED SANITARY BALL VALVE
PRESSURE
- 1000PSI (PN63)
FEATURE
- Investment Casting Construction
- ISO 5211 Direct Mounting Flange
- T-Port or L-Port
- Blow-Out-Proof Stem Design
- Anti-Static Device (Option)
- Design acorrding to 3A
- Cavity Filled Ball Valve Option Available
END CONNECTION :
- Tri-Clamp / Tube Ends
Material :
- Stainless Steel
SIZE
- Tube Bore 1/2" ~ 2" (DN15 ~ DN50)
DESIGN :
- ANSI B16.34
- BPE-2005
CERTIFICATE :
- FDA Regulatory Status
- USP TEST
- ISO 9001
- PED EU/2014/68 Module H
- CRN
