Modentic's high-pressure valve series is designed with pressure up to 6000 psi / PN 420. The three-piece design is easy for maintenance while the two-piece design provides a more economical choice.

Modentic 3000 PSI Ball Valve are used in a variety of applications including the production and processing of gases, high purity applications, and other specialty applications.

We Offer:

Three Piece High Pressure Ball Valve

High Pressure Fire Safe Approved Ball Valves

HPV-40/41

FULL/REDUCED BORE BALL VALVE

SIZE & PRESSURE

  • 3000PSI (PN210) for HPV-40 1/4" ~ 2" (DN8 ~ DN50)
  • 6000PSI (PN410) for HPV-41 1/4" ~ 2" (DN8 ~ DN50)

END CONNECTION :

  • Threaded / Socket Weld / Butt Weld

FEATURE

  1. ISO 5211 Mounting Flange
  2. Blow-Out-Proof Stem Design
  3. Anti-Static Device
  4. 8 Bolts Design
  5. Handle With Locking Device

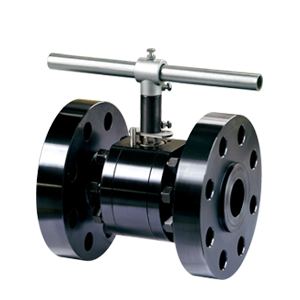

HPV-43

FULL/REDUCED BORE BALL VALVE

PRESSURE & SIZE

  • Class 900 ( PN210 ) for 1/2" ~ 2" ( DN15 ~ DN50 )

END CONNECTION :

  • Flanged End

FEATURE

  1. ISO 5211 Mounting Flange (Non-Direct)
  2. Blow-Out-Proof Stem Design
  3. Anti-Static Device
  4. 8 Bolts Design
  5. Handle With Locking Device

DESIGN :

  • ANSI B16.34
  • API 608 Design
  • NACE MR-0175 / ISO 15156
  • API 6D
  • ISO 14313
  • ISO 17292

CERTIFICATE & TEST:

  • API 607 Fire Safe Approved
  • ISO 10497 Fire Safe Approved
  • PED EU/2014/68 Module H
  • ATEX 2014/34/EU
  • CRN

Two Piece High Pressure Ball Valve

V-158

HPV-38

2 PIECE HIGH PRESSURE BALL VALVE

PRESSURE

  • 3000PSI (PN210) for 1/4" ~ 2" (DN8 ~ DN50)

FEATURE

  1. Investment Casting Construction
  2. ISO 5211 Direct Mounting Flange
  3. Blow-Out-Proof Stem Design
  4. Anti Static Device
  5. Handle With Locking Device
  6. API 607 Fire Safe Approved

END CONNECTION :

  • Threaded

Material :

  • Stainless Steel / Carbon Steel

SIZE

  • Full Bore 1/4" ~ 2" (DN8 ~ DN50)

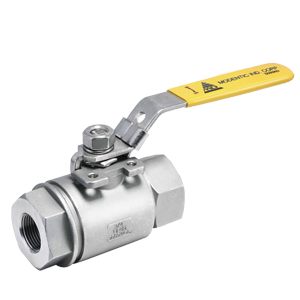

HPV-30/60

2 PIECE HIGH PRESSURE BALL VALVE

PRESSURE & SIZE

  • 3000PSI (PN210) for HPV-30 1/4" ~ 2" (DN8 ~ DN50)
  • 6000PSI (PN410) for HPV-60 1/4" ~ 2" (DN8 ~ DN50)

END CONNECTION :

  • Threaded

FEATURE

  1. Blow-Out-Proof Stem Design
  2. Anti-Static Device
  3. Handle With Locking Device
literature

HPV-30 HPV-60

DESIGN :

  • ANSI B16.34
  • API 608 Design
  • NACE MR-0175 / ISO 15156
  • API 6D
  • ISO 14313
  • ISO 17292

CERTIFICATE & TEST:

  • PED EU/2014/68 Module H
  • ATEX 2014/34/EU
  • CRN
