Angle Needle Valves Manufacturer - Kevin Steel Corp.
Sealed to Outperform
We design our needle valves with compact, robust, and cost-effective features to ensure superior sealing and performance
Modentic angle needle valves are used in a variety of applications including the production and processing of gases, high purity applications, and other specialty applications.
We Offer:
- Gas Needle Valves: Oxygen, Co2, Propane, Air ,etc.
- Horizontal Needle Valves / Angle Needle Valves
- High Pressure Needle Valves
- Needle Control Valve
- Diverse Materials Options (In Stock): Stainless Steel Needle Valves / SS316L / (Super) Duplex / Alloy 20 / Titanium-Valves / 904L / Monel / Alloy C276 Alloy 22

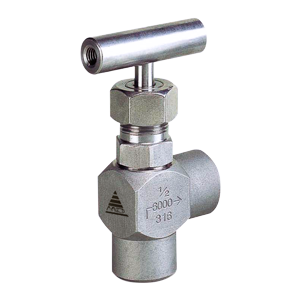

NV-0062
Angle Type Needle Valves
SIZE & PRESSURE
- 6000PSI (PN410) for 1/8" ~ 2" (DN6 ~ DN50)
FEATURE
- Investment cast component
- Provide Bubble- tight shut off for liquid and gas
- Metal to metal design
- Fire safe design as an option
END CONNECTION :
- Threaded Ends : Female x Female
Temperature Range :
- -20°C to 180°C (-4°F to 356°F)
- Special Design Up to 500°C (932°F)
Material :
- SS316 / SS304 / SS316L / Carbon Steel

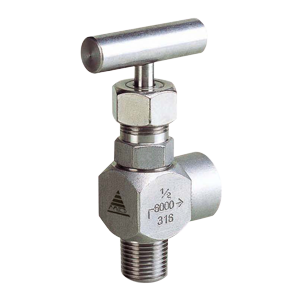

NV-0063
Angle Type Needle Valves
SIZE & PRESSURE
- 6000PSI (PN410) for 1/8" ~ 2" (DN6 ~ DN50)
FEATURE
- Investment cast component
- Provide Bubble- tight shut off for liquid and gas
- Metal to metal design
- Fire safe design as an option
- Teflon back up stem seal
END CONNECTION :
- Threaded Ends : Male x Female
Temperature Range :
- -20°C to 180°C (-4°F to 356°F)
- Special Design Up to 500°C (932°F)
Material :
- SS316 / SS304 / SS316L / Carbon Steel
DESIGN :
- ASME B16.34
CERTIFICATE :
- ISO 9001
- PED EU/2014/68 Module H
- CRN
