Needle Valves - Flow Control - Kevin Steel Corp.
Take your needle valves and flow control systems to the next level with our Needle Valves.
Modentic needle valves are used in a variety of flow control applications including the production and processing of gases, high purity applications, and other specialty applications.
We Offer:
- Gas Needle Valves: Oxygen, Co2, Propane, Air ,etc.
- Horizontal Needle Valves / Cryogenic Needle Valves
- High Pressure Needle Valves
- Needle Control Valve
- Diverse Materials Options (In Stock): Stainless Steel Needle Valves / SS316L / (Super) Duplex / Alloy 20 / Titanium-Valves / 904L / Monel / Alloy C276 Alloy 22

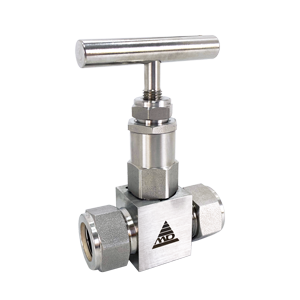

NV-0090
Needle Valves - Flow Control
SIZE & PRESSURE
- 6000PSI (PN410) for 1/8" ~ 2" (DN6 ~ DN50)
FEATURE
- Investment cast component
- Provide Bubble- tight shut off for liquid and gas
- Metal to metal design
- Fire safe design as an option
END CONNECTION :
- Tube Fitting x Tube Fitting
- Threaded x Tube Fitting
- Customizable Options
Temperature Range :
- -196°C to 180°C (-320°F to 356°F)
- Special Design Up to 500°C (932°F)
Material :
- SS316 / SS304 / SS316L / Carbon Steel

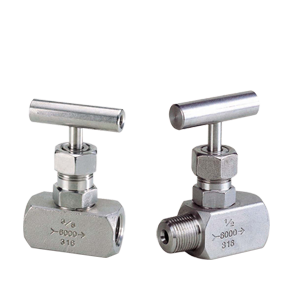

NV-0060 / NV-0061
Needle Valves
SIZE & PRESSURE
- 6000PSI / 10000PSI for 1/8" ~ 2" (DN6 ~ DN50)
FEATURE
- Investment cast component
- Provide Bubble- tight shut off for liquid and gas
- Metal to metal design
- Fire safe design as an option
END CONNECTION :
- Threaded Ends : Female x Female / Male x Female / Male x Male
- Butt Weld
- Socket Weld
- Tube Fitting x Tube Fitting
- Threaded x Tube Fitting
Temperature Range :
- -20°C to 180°C (-4°F to 356°F)
- Special Design Up to 500°C (932°F)
Material :
- SS316 / SS304 / SS316L / Carbon Steel
NV-0070
Bar Stock Needle Valves
SIZE & PRESSURE
- 6000PSI (PN410) for 1/8" ~ 2" (DN6 ~ DN50)
FEATURE
- Investment cast component
- Provide Bubble- tight shut off for liquid and gas
- Metal to metal design
- Fire safe design as an option
- Bar stock body design
- Straight and angle pattern
END CONNECTION :
- Threaded Ends : Female x Female / Male x Female / Male x Male
- Butt Weld
- Socket Weld
- Tube Fitting x Tube Fitting
- Threaded x Tube Fitting
Temperature Range :
- -196°C to 180°C (-320°F to 356°F)
- Special Design Up to 500°C (932°F)
Material :
- SS316 / SS304 / SS316L / Alloy 20 / Hastealloy / (Super) Duplex / Monel / Titanium / SS904L
DESIGN :
- ASME B16.34
CERTIFICATE :
- ISO 9001
- PED EU/2014/68 Module H
- UKCA
- CRN
- ATEX
