SAE Flange End Ball Valves
ISO 6162-1 and ISO 6162-2 Flange Types Available
Our SAE flanged ball valves excel in high-pressure hydraulic applications. These valves feature a seamless assembly and disassembly process, facilitated by multiple bolts securing them to pipe flanges. You can choose from two variants: SAE 3000 (ISO 6162-1) and SAE 6000 (ISO 6162-2) to meet your specific requirements.
Diversed Material Options
SS316, SS316L, Carbon Steel and high nickel alloy valves available : Alloy 20, Hastelloy® C, Duplex 4A, Super Duplex 5A, Monel®, SS904L, Titanium.

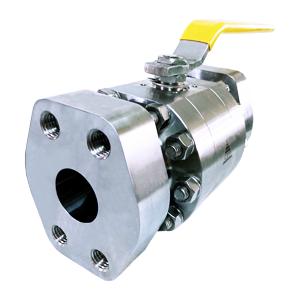

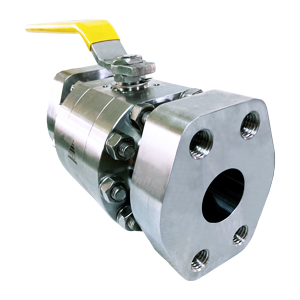

High-Pressure SAE Connection Ball Valve
SAE Ball Valve
FULL/REDUCED BORE BALL VALVE
SIZE & PRESSURE
- 3000PSI (PN210) for 1/4" ~ 2" (DN8 ~ DN50)
- 6000PSI (PN410) for 1/4" ~ 2" (DN8 ~ DN50)
END CONNECTION :
- SAE Flanged End
FEATURE
- Pressure range up to 420bar / 6000PSI
- ISO 5211 Direct Mounting Flange
- Blow-Out-Proof Stem Design
- Anti-Static Device
- Handle With Locking Device
Material :
- SS316, SS316L, Carbon Steel and high nickel alloy valves available : Alloy 20, Hastelloy® C, Duplex 4A, Super Duplex 5A, Monel®, SS904L, Titanium.
DESIGN :
- ANSI B16.34
- API 608 Design
- NACE MR-0175 / ISO 15156
- API 6D
- ISO 14313
- ISO 17292
CERTIFICATE & TEST :
- API 607 Fire Safe Approved
- ISO 10497 Fire Safe Approved
- PED EU/2014/68 Module H
- ATEX 2014/34/EU
- CRN

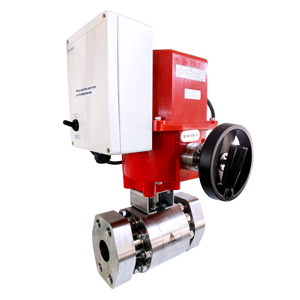

Electric Actuated SAE Flange End Ball Valve
Electric Actuated SAE Ball Valves
FULL/REDUCED BORE BALL VALVE
PRESSURE
- 3000PSI (PN210) for 1/4" ~ 2" (DN8 ~ DN50)
- 6000PSI (PN410) for 1/4" ~ 2" (DN8 ~ DN50)
END CONNECTION :
- SAE Flanged End
FEATURE
- Pressure range up to 420bar / 6000PSI
- ISO 5211 Direct Mounting
- Blow-Out-Proof Stem Design
- Anti-Static Device
Material :
- SS316, SS316L, Carbon Steel and high nickel alloy valves available : Alloy 20, Hastelloy® C, Duplex 4A, Super Duplex 5A, Monel®, SS904L, Titanium.
AVAILABLE ACCESSORIES
- Solenoid Valve
- Positioner
- Limit Switch
DESIGN :
- ANSI B16.34
- API 608 Design
- NACE MR-0175 / ISO 15156
- API 6D
- ISO 14313
- ISO 17292
CERTIFICATE & TEST:
- API 607 Fire Safe Approved
- ISO 10497 Fire Safe Approved
- TALUFT / ISO 15848-1 Fugitive Emission Approved
- PED EU/2014/68 Module H
- ATEX 2014/34/EU
- CRN
- ABS Type Approved
